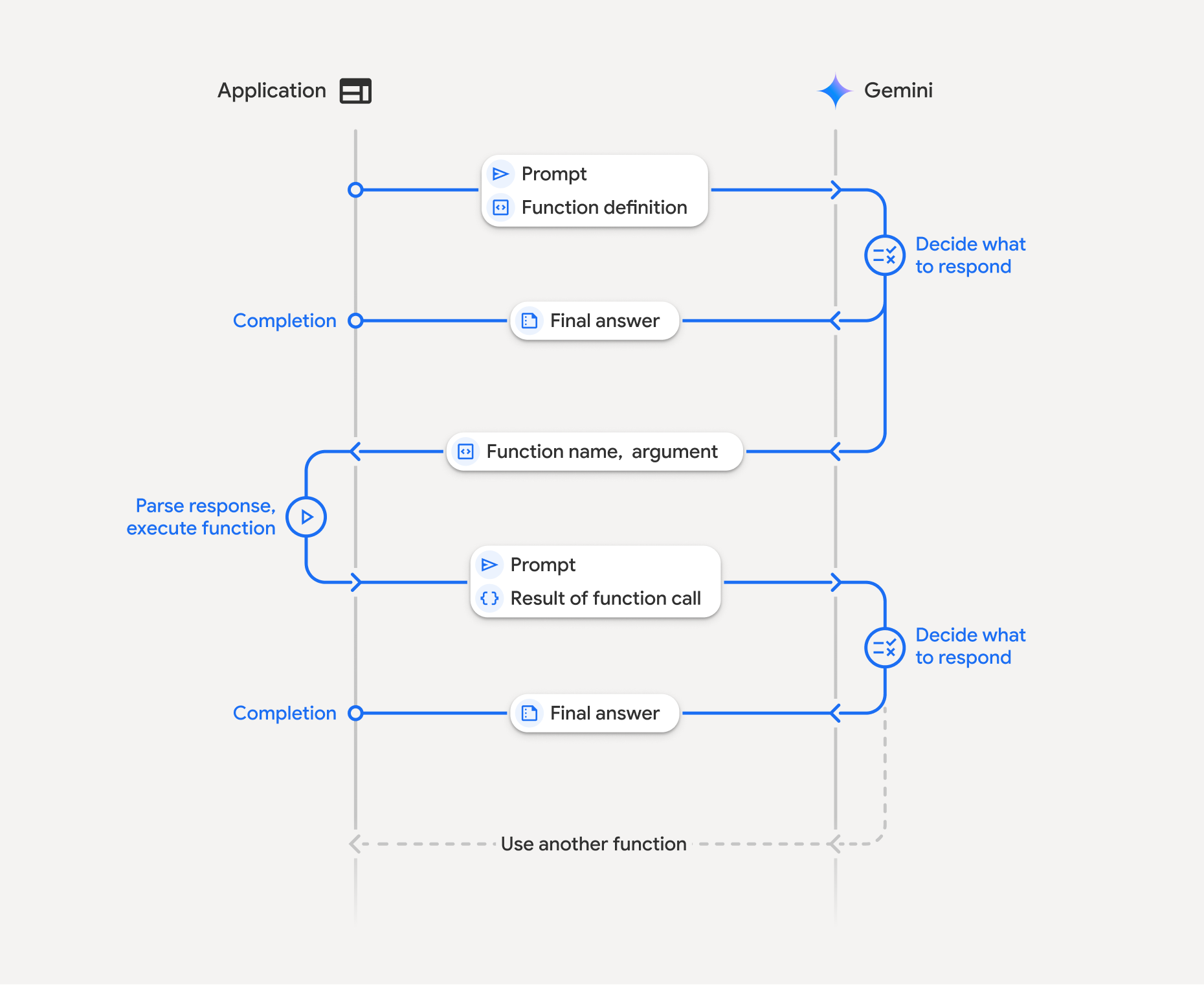

函式呼叫功能可讓您將模型連結至外部工具和 API。 模型不會生成文字回覆，而是判斷何時應呼叫特定函式，並提供執行實際動作所需的參數。這項技術可讓模型成為自然語言與現實世界動作和資料之間的橋梁。函式呼叫有 3 個主要用途：
- 採取行動：使用 API 與外部系統互動，例如安排預約、建立發票、傳送電子郵件或控制智慧住宅裝置。
- 擴增知識：存取外部來源的資訊，例如資料庫、API 和知識庫。
- 擴充功能：使用外部工具執行運算，並擴充模型限制，例如使用計算機或建立圖表。
請參閱下列範例：
安排會議
這個範例說明如何定義函式，在特定時間排定與會者會議，讓模型剖析使用者要求並傳回結構化引數，以觸發外部系統中的動作。
Python
from google import genai
schedule_meeting_function = {
"type": "function",
"name": "schedule_meeting",
"description": "Schedules a meeting with specified attendees at a given time and date.",
"parameters": {
"type": "object",
"properties": {
"attendees": {"type": "array", "items": {"type": "string"}},
"date": {"type": "string", "description": "Date (e.g., '2024-07-29')"},
"time": {"type": "string", "description": "Time (e.g., '15:00')"},
"topic": {"type": "string", "description": "The meeting topic."},
},
"required": ["attendees", "date", "time", "topic"],
},
}
client = genai.Client()
interaction = client.interactions.create(
model="gemini-3.8-flash",
input="Schedule a meeting with Bob and Alice for 03/14/2025 at 10:00 AM about Q3 planning.",
tools=[{"type": "function", **schedule_meeting_function}],
)
for step in interaction.steps:
if step.type == "function_call":
print(f"Function to call: {step.name}")
print(f"Arguments: {step.arguments}")
JavaScript
import { GoogleGenAI } from '@google/genai';
const client = new GoogleGenAI({});
const scheduleMeetingFunction = {
type: 'function',
name: 'schedule_meeting',
description: 'Schedules a meeting with specified attendees at a given time and date.',
parameters: {
type: 'object',
properties: {
attendees: { type: 'array', items: { type: 'string' } },
date: { type: 'string', description: 'Date (e.g., "2024-07-29")' },
time: { type: 'string', description: 'Time (e.g., "15:00")' },
topic: { type: 'string', description: 'The meeting topic.' },
},
required: ['attendees', 'date', 'time', 'topic'],
},
};
const interaction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: 'Schedule a meeting with Bob and Alice for 03/27/2025 at 10:00 AM about Q3 planning.',
tools: [scheduleMeetingFunction],
});
for (const step of interaction.steps) {
if (step.type === 'function_call') {
console.log(`Function to call: ${step.name}`);
console.log(`Arguments: ${JSON.stringify(step.arguments)}`);
}
}
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.Collections;
import java.util.HashMap;
import java.util.Map;
Client client = new Client();
Map<String, Object> attendeesProp = new HashMap<>();
attendeesProp.put("type", "array");
attendeesProp.put("items", Collections.singletonMap("type", "string"));
Map<String, Object> dateProp = new HashMap<>();
dateProp.put("type", "string");
dateProp.put("description", "Date (e.g., '2024-07-29')");
Map<String, Object> timeProp = new HashMap<>();
timeProp.put("type", "string");
timeProp.put("description", "Time (e.g., '15:00')");
Map<String, Object> topicProp = new HashMap<>();
topicProp.put("type", "string");
topicProp.put("description", "The meeting topic.");
Map<String, Object> properties = new HashMap<>();
properties.put("attendees", attendeesProp);
properties.put("date", dateProp);
properties.put("time", timeProp);
properties.put("topic", topicProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("attendees", "date", "time", "topic"));
Function scheduleMeetingFunction =
Function.builder()
.name("schedule_meeting")
.description("Schedules a meeting with specified attendees at a given time and date.")
.parameters(parameters)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(
InteractionsInput.of(
"Schedule a meeting with Bob and Alice for 03/14/2025 at 10:00 AM about Q3 planning."))
.tools(Arrays.asList(scheduleMeetingFunction))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
FunctionCallStep functionCall = (FunctionCallStep) step;
System.out.println("Function to call: " + functionCall.name().orElse(""));
System.out.println("Arguments: " + functionCall.arguments().orElse(null));
}
}
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
scheduleMeetingFunction := interactions.NewTool(interactions.Function{
Name: genai.Ptr("schedule_meeting"),
Description: genai.Ptr("Schedules a meeting with specified attendees at a given time and date."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"attendees": map[string]any{
"type": "array",
"items": map[string]any{"type": "string"},
},
"date": map[string]any{
"type": "string",
"description": "Date (e.g., '2024-07-29')",
},
"time": map[string]any{
"type": "string",
"description": "Time (e.g., '15:00')",
},
"topic": map[string]any{
"type": "string",
"description": "The meeting topic.",
},
},
"required": []string{"attendees", "date", "time", "topic"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("Schedule a meeting with Bob and Alice for 03/14/2025 at 10:00 AM about Q3 planning."),
Tools: []interactions.Tool{scheduleMeetingFunction},
},
),
})
if err != nil {
log.Fatal(err)
}
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fc := step.FunctionCallStep
fmt.Println("Function to call:", fc.Name)
fmt.Println("Arguments:", fc.Arguments)
}
}
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"input": "Schedule a meeting with Bob and Alice for 03/27/2025 at 10:00 AM about Q3 planning.",
"tools": [{
"type": "function",
"name": "schedule_meeting",
"description": "Schedules a meeting with specified attendees at a given time and date.",
"parameters": {
"type": "object",
"properties": {
"attendees": {"type": "array", "items": {"type": "string"}},
"date": {"type": "string"},
"time": {"type": "string"},
"topic": {"type": "string"}
},
"required": ["attendees", "date", "time", "topic"]
}
}]
}'
取得天氣資訊
這個範例說明如何定義函式來擷取特定地點的溫度資料，讓模型呼叫外部 API，回答需要即時或外部資訊的查詢。
Python
from google import genai
weather_function = {
"type": "function",
"name": "get_current_temperature",
"description": "Gets the current temperature for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {
"type": "string",
"description": "The city name, e.g. San Francisco",
},
},
"required": ["location"],
},
}
client = genai.Client()
interaction = client.interactions.create(
model="gemini-3.8-flash",
input="What's the temperature in London?",
tools=[weather_function],
)
for step in interaction.steps:
if step.type == "function_call":
print(f"Function to call: {step.name}")
print(f"Arguments: {step.arguments}")
JavaScript
import { GoogleGenAI } from '@google/genai';
const client = new GoogleGenAI({});
const weatherFunctionDeclaration = {
type: 'function',
name: 'get_current_temperature',
description: 'Gets the current temperature for a given location.',
parameters: {
type: 'object',
properties: {
location: {
type: 'string',
description: 'The city name, e.g. San Francisco',
},
},
required: ['location'],
},
};
const interaction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: "What's the temperature in London?",
tools: [weatherFunctionDeclaration],
});
for (const step of interaction.steps) {
if (step.type === 'function_call') {
console.log(`Function to call: ${step.name}`);
console.log(`Arguments: ${JSON.stringify(step.arguments)}`);
}
}
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
Client client = new Client();
Map<String, Object> locationProp = new HashMap<>();
locationProp.put("type", "string");
locationProp.put("description", "The city name, e.g. San Francisco");
Map<String, Object> properties = new HashMap<>();
properties.put("location", locationProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("location"));
Function weatherFunction =
Function.builder()
.name("get_current_temperature")
.description("Gets the current temperature for a given location.")
.parameters(parameters)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(InteractionsInput.of("What's the temperature in London?"))
.tools(Arrays.asList(weatherFunction))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
FunctionCallStep functionCall = (FunctionCallStep) step;
System.out.println("Function to call: " + functionCall.name().orElse(""));
System.out.println("Arguments: " + functionCall.arguments().orElse(null));
}
}
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
weatherFunction := interactions.NewTool(interactions.Function{
Name: genai.Ptr("get_current_temperature"),
Description: genai.Ptr("Gets the current temperature for a given location."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"location": map[string]any{
"type": "string",
"description": "The city name, e.g. San Francisco",
},
},
"required": []string{"location"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("What's the temperature in London?"),
Tools: []interactions.Tool{weatherFunction},
},
),
})
if err != nil {
log.Fatal(err)
}
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fc := step.FunctionCallStep
fmt.Println("Function to call:", fc.Name)
fmt.Println("Arguments:", fc.Arguments)
}
}
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"input": "What'\''s the temperature in London?",
"tools": [{
"type": "function",
"name": "get_current_temperature",
"description": "Gets the current temperature for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {"type": "string", "description": "The city name"}
},
"required": ["location"]
}
}]
}'
建立圖表
這個範例說明如何定義函式，從結構化資料產生長條圖，並示範模型如何使用外部工具執行計算或建立視覺化資產：
Python
from google import genai
create_chart_function = {
"type": "function",
"name": "create_bar_chart",
"description": "Creates a bar chart given a title, labels, and values.",
"parameters": {
"type": "object",
"properties": {
"title": {"type": "string", "description": "The title for the chart."},
"labels": {"type": "array", "items": {"type": "string"}},
"values": {"type": "array", "items": {"type": "number"}},
},
"required": ["title", "labels", "values"],
},
}
client = genai.Client()
interaction = client.interactions.create(
model="gemini-3.8-flash",
input="Create a bar chart titled 'Quarterly Sales' with Q1: 50000, Q2: 75000, Q3: 60000.",
tools=[create_chart_function],
)
for step in interaction.steps:
if step.type == "function_call":
print(f"Function to call: {step.name}")
print(f"Arguments: {step.arguments}")
JavaScript
import { GoogleGenAI } from '@google/genai';
const client = new GoogleGenAI({});
const createChartFunctionDeclaration = {
type: 'function',
name: 'create_bar_chart',
description: 'Creates a bar chart given a title, labels, and values.',
parameters: {
type: 'object',
properties: {
title: { type: 'string', description: 'The title for the chart.' },
labels: { type: 'array', items: { type: 'string' } },
values: { type: 'array', items: { type: 'number' } },
},
required: ['title', 'labels', 'values'],
},
};
const interaction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: "Create a bar chart titled 'Quarterly Sales' with Q1: 50000, Q2: 75000, Q3: 60000.",
tools: [createChartFunctionDeclaration],
});
for (const step of interaction.steps) {
if (step.type === 'function_call') {
console.log(`${step.name}(${JSON.stringify(step.arguments)})`);
}
}
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.Collections;
import java.util.HashMap;
import java.util.Map;
Client client = new Client();
Map<String, Object> properties = new HashMap<>();
Map<String, Object> titleMap = new HashMap<>();
titleMap.put("type", "string");
titleMap.put("description", "The title for the chart.");
properties.put("title", titleMap);
Map<String, Object> labelsMap = new HashMap<>();
labelsMap.put("type", "array");
labelsMap.put("items", Collections.singletonMap("type", "string"));
properties.put("labels", labelsMap);
Map<String, Object> valuesMap = new HashMap<>();
valuesMap.put("type", "array");
valuesMap.put("items", Collections.singletonMap("type", "number"));
properties.put("values", valuesMap);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("title", "labels", "values"));
Function createChartFunction =
Function.builder()
.name("create_bar_chart")
.description("Creates a bar chart given a title, labels, and values.")
.parameters(parameters)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(
InteractionsInput.of(
"Create a bar chart titled 'Quarterly Sales' with Q1: 50000, Q2: 75000, Q3: 60000."))
.tools(Arrays.asList(createChartFunction))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
FunctionCallStep functionCall = (FunctionCallStep) step;
System.out.println("Function to call: " + functionCall.name().orElse(""));
System.out.println("Arguments: " + functionCall.arguments().orElse(null));
}
}
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
createChartFunction := interactions.NewTool(interactions.Function{
Name: genai.Ptr("create_bar_chart"),
Description: genai.Ptr("Creates a bar chart given a title, labels, and values."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"title": map[string]any{
"type": "string",
"description": "The title for the chart.",
},
"labels": map[string]any{
"type": "array",
"items": map[string]any{"type": "string"},
},
"values": map[string]any{
"type": "array",
"items": map[string]any{"type": "number"},
},
},
"required": []string{"title", "labels", "values"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("Create a bar chart titled 'Quarterly Sales' with Q1: 50000, Q2: 75000, Q3: 60000."),
Tools: []interactions.Tool{createChartFunction},
},
),
})
if err != nil {
log.Fatal(err)
}
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fc := step.FunctionCallStep
fmt.Println("Function to call:", fc.Name)
fmt.Println("Arguments:", fc.Arguments)
}
}
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"input": "Create a bar chart titled '\''Quarterly Sales'\'' with Q1: 50000, Q2: 75000, Q3: 60000.",
"tools": [{
"type": "function",
"name": "create_bar_chart",
"description": "Creates a bar chart given a title, labels, and values.",
"parameters": {
"type": "object",
"properties": {
"title": {"type": "string"},
"labels": {"type": "array", "items": {"type": "string"}},
"values": {"type": "array", "items": {"type": "number"}}
},
"required": ["title", "labels", "values"]
}
}]
}'
函式呼叫的運作方式
函式呼叫是指應用程式、模型和外部函式之間的結構化互動：
- 定義函式宣告：向模型定義函式的名稱、參數和用途。
- 呼叫大型語言模型並宣告函式：將使用者提示和函式宣告傳送至模型。
- 執行函式程式碼 (您的責任)：模型不會自行執行函式，擷取名稱和引數，並在應用程式中執行。
- 建立易於理解的回覆：將結果傳回模型，生成最終的易於理解的回覆。
這項程序可以重複多輪。模型支援在單一回合中呼叫多個函式 (平行函式呼叫)，以及依序呼叫 (組合函式呼叫)。
步驟 1：定義函式宣告
Python
set_light_values_declaration = {
"type": "function",
"name": "set_light_values",
"description": "Sets the brightness and color temperature of a light.",
"parameters": {
"type": "object",
"properties": {
"brightness": {
"type": "integer",
"description": "Light level from 0 to 100",
},
"color_temp": {
"type": "string",
"enum": ["daylight", "cool", "warm"],
"description": "Color temperature",
},
},
"required": ["brightness", "color_temp"],
},
}
def set_light_values(brightness: int, color_temp: str) -> dict:
"""Set the brightness and color temperature of a room light."""
return {"brightness": brightness, "colorTemperature": color_temp}
JavaScript
const setLightValuesTool = {
type: 'function',
name: 'set_light_values',
description: 'Sets the brightness and color temperature of a light.',
parameters: {
type: 'object',
properties: {
brightness: { type: 'number', description: 'Light level from 0 to 100' },
color_temp: { type: 'string', enum: ['daylight', 'cool', 'warm'] },
},
required: ['brightness', 'color_temp'],
},
};
function setLightValues(brightness, color_temp) {
return { brightness: brightness, colorTemperature: color_temp };
}
Java
import com.google.genai.gaos.models.interactions.Function;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
import java.util.function.BiFunction;
Map<String, Object> brightnessProp = new HashMap<>();
brightnessProp.put("type", "integer");
brightnessProp.put("description", "Light level from 0 to 100");
Map<String, Object> colorTempProp = new HashMap<>();
colorTempProp.put("type", "string");
colorTempProp.put("enum", Arrays.asList("daylight", "cool", "warm"));
colorTempProp.put("description", "Color temperature");
Map<String, Object> properties = new HashMap<>();
properties.put("brightness", brightnessProp);
properties.put("color_temp", colorTempProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("brightness", "color_temp"));
Function setLightValuesDeclaration =
Function.builder()
.name("set_light_values")
.description("Sets the brightness and color temperature of a light.")
.parameters(parameters)
.build();
BiFunction<Integer, String, Map<String, Object>> setLightValues =
(brightness, colorTemp) -> {
Map<String, Object> result = new HashMap<>();
result.put("brightness", brightness);
result.put("colorTemperature", colorTemp);
return result;
};
Go
package main
import (
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
)
func setLightValues(brightness int, colorTemp string) map[string]any {
return map[string]any{
"brightness": brightness,
"colorTemperature": colorTemp,
}
}
func main() {
setLightValuesDeclaration := interactions.NewTool(interactions.Function{
Name: genai.Ptr("set_light_values"),
Description: genai.Ptr("Sets the brightness and color temperature of a light."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"brightness": map[string]any{
"type": "integer",
"description": "Light level from 0 to 100",
},
"color_temp": map[string]any{
"type": "string",
"enum": []string{"daylight", "cool", "warm"},
"description": "Color temperature",
},
},
"required": []string{"brightness", "color_temp"},
},
})
_ = setLightValuesDeclaration
}
步驟 2：使用函式宣告呼叫模型
Python
from google import genai
client = genai.Client()
interaction = client.interactions.create(
model="gemini-3.8-flash",
input="Turn the lights down to a romantic level",
tools=[set_light_values_declaration],
)
fc_step = next(s for s in interaction.steps if s.type == "function_call")
print(fc_step)
JavaScript
import { GoogleGenAI } from '@google/genai';
const client = new GoogleGenAI({});
const interaction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: 'Turn the lights down to a romantic level',
tools: [setLightValuesTool],
});
const fcStep = interaction.steps.find(s => s.type === 'function_call');
console.log(fcStep);
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
Client client = new Client();
Map<String, Object> brightnessProp = new HashMap<>();
brightnessProp.put("type", "integer");
brightnessProp.put("description", "Light level from 0 to 100");
Map<String, Object> colorTempProp = new HashMap<>();
colorTempProp.put("type", "string");
colorTempProp.put("enum", Arrays.asList("daylight", "cool", "warm"));
colorTempProp.put("description", "Color temperature");
Map<String, Object> properties = new HashMap<>();
properties.put("brightness", brightnessProp);
properties.put("color_temp", colorTempProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("brightness", "color_temp"));
Function setLightValuesDeclaration =
Function.builder()
.name("set_light_values")
.description("Sets the brightness and color temperature of a light.")
.parameters(parameters)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(InteractionsInput.of("Turn the lights down to a romantic level"))
.tools(Arrays.asList(setLightValuesDeclaration))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
FunctionCallStep fcStep = null;
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
fcStep = (FunctionCallStep) step;
break;
}
}
}
System.out.println(fcStep);
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
setLightValuesDeclaration := interactions.NewTool(interactions.Function{
Name: genai.Ptr("set_light_values"),
Description: genai.Ptr("Sets the brightness and color temperature of a light."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"brightness": map[string]any{
"type": "integer",
"description": "Light level from 0 to 100",
},
"color_temp": map[string]any{
"type": "string",
"enum": []string{"daylight", "cool", "warm"},
"description": "Color temperature",
},
},
"required": []string{"brightness", "color_temp"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("Turn the lights down to a romantic level"),
Tools: []interactions.Tool{setLightValuesDeclaration},
},
),
})
if err != nil {
log.Fatal(err)
}
var fcStep *interactions.FunctionCallStep
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fcStep = step.FunctionCallStep
break
}
}
fmt.Println(fcStep)
}
模型會傳回包含 type、name 和 arguments 的 function_call 步驟：
type='function_call'
name='set_light_values'
arguments={'color_temp': 'warm', 'brightness': 25}
步驟 3：執行函式
Python
fc_step = next(s for s in interaction.steps if s.type == "function_call")
if fc_step.name == "set_light_values":
result = set_light_values(**fc_step.arguments)
print(f"Function execution result: {result}")
JavaScript
const fcStep = interaction.steps.find(s => s.type === 'function_call');
let result;
if (fcStep.name === 'set_light_values') {
result = setLightValues(fcStep.arguments.brightness, fcStep.arguments.color_temp);
console.log(`Function execution result: ${JSON.stringify(result)}`);
}
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.Collections;
import java.util.HashMap;
import java.util.Map;
import java.util.function.BiFunction;
Client client = new Client();
Map<String, Object> brightnessProp = new HashMap<>();
brightnessProp.put("type", "integer");
brightnessProp.put("description", "Light level from 0 to 100");
Map<String, Object> colorTempProp = new HashMap<>();
colorTempProp.put("type", "string");
colorTempProp.put("enum", Arrays.asList("daylight", "cool", "warm"));
colorTempProp.put("description", "Color temperature");
Map<String, Object> properties = new HashMap<>();
properties.put("brightness", brightnessProp);
properties.put("color_temp", colorTempProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("brightness", "color_temp"));
Function setLightValuesDeclaration =
Function.builder()
.name("set_light_values")
.description("Sets the brightness and color temperature of a light.")
.parameters(parameters)
.build();
BiFunction<Integer, String, Map<String, Object>> setLightValues =
(brightness, colorTemp) -> {
Map<String, Object> result = new HashMap<>();
result.put("brightness", brightness);
result.put("colorTemperature", colorTemp);
return result;
};
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(InteractionsInput.of("Turn the lights down to a romantic level"))
.tools(Arrays.asList(setLightValuesDeclaration))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
FunctionCallStep fcStep = (FunctionCallStep) step;
if ("set_light_values".equals(fcStep.name().orElse(""))) {
Map<String, Object> args = fcStep.arguments().orElse(Collections.emptyMap());
int brightness = ((Number) args.getOrDefault("brightness", 25)).intValue();
String colorTemp = (String) args.getOrDefault("color_temp", "warm");
Map<String, Object> result = setLightValues.apply(brightness, colorTemp);
System.out.println("Function execution result: " + result);
}
}
}
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func setLightValues(brightness int, colorTemp string) map[string]any {
return map[string]any{
"brightness": brightness,
"colorTemperature": colorTemp,
}
}
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
setLightValuesDeclaration := interactions.NewTool(interactions.Function{
Name: genai.Ptr("set_light_values"),
Description: genai.Ptr("Sets the brightness and color temperature of a light."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"brightness": map[string]any{
"type": "integer",
"description": "Light level from 0 to 100",
},
"color_temp": map[string]any{
"type": "string",
"enum": []string{"daylight", "cool", "warm"},
"description": "Color temperature",
},
},
"required": []string{"brightness", "color_temp"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("Turn the lights down to a romantic level"),
Tools: []interactions.Tool{setLightValuesDeclaration},
},
),
})
if err != nil {
log.Fatal(err)
}
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fcStep := step.FunctionCallStep
if fcStep.Name == "set_light_values" {
brightness := 25
if b, ok := fcStep.Arguments["brightness"].(float64); ok {
brightness = int(b)
}
colorTemp := "warm"
if c, ok := fcStep.Arguments["color_temp"].(string); ok {
colorTemp = c
}
result := setLightValues(brightness, colorTemp)
fmt.Println("Function execution result:", result)
}
}
}
}
步驟 4：將結果傳回模型
Python
final_interaction = client.interactions.create(
model="gemini-3.8-flash",
input=[
{
"type": "function_result",
"name": fc_step.name,
"call_id": fc_step.id,
"result": [{"type": "text", "text": json.dumps(result)}],
}
],
tools=[set_light_values_declaration],
previous_interaction_id=interaction.id,
)
print(final_interaction.output_text)
JavaScript
const finalInteraction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: [{
type: 'function_result',
name: fcStep.name,
call_id: fcStep.id,
result: [{ type: 'text', text: JSON.stringify(result) }]
}],
tools: [setLightValuesTool],
previous_interaction_id: interaction.id,
});
console.log(finalInteraction.output_text);
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.FunctionResultStep;
import com.google.genai.gaos.models.interactions.FunctionResultStepResultUnion;
import com.google.genai.gaos.models.interactions.FunctionResultSubcontent;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.interactions.TextContent;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
Client client = new Client();
Map<String, Object> brightnessProp = new HashMap<>();
brightnessProp.put("type", "integer");
brightnessProp.put("description", "Light level from 0 to 100");
Map<String, Object> colorTempProp = new HashMap<>();
colorTempProp.put("type", "string");
colorTempProp.put("enum", Arrays.asList("daylight", "cool", "warm"));
colorTempProp.put("description", "Color temperature");
Map<String, Object> properties = new HashMap<>();
properties.put("brightness", brightnessProp);
properties.put("color_temp", colorTempProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("brightness", "color_temp"));
Function setLightValuesDeclaration =
Function.builder()
.name("set_light_values")
.description("Sets the brightness and color temperature of a light.")
.parameters(parameters)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(InteractionsInput.of("Turn the lights down to a romantic level"))
.tools(Arrays.asList(setLightValuesDeclaration))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
FunctionCallStep fcStep = null;
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
fcStep = (FunctionCallStep) step;
break;
}
}
}
if (fcStep != null) {
String resultJson = "{\"brightness\": 25, \"colorTemperature\": \"warm\"}";
FunctionResultStep resultStep =
FunctionResultStep.builder()
.name(fcStep.name().orElse(""))
.callId(fcStep.id().orElse(""))
.result(
FunctionResultStepResultUnion.of(
Arrays.<FunctionResultSubcontent>asList(
TextContent.builder().text(resultJson).build())))
.build();
CreateModelInteraction finalParams =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.previousInteractionId(interaction.id().orElse(""))
.tools(Arrays.asList(setLightValuesDeclaration))
.input(InteractionsInput.ofStep(Arrays.<Step>asList(resultStep)))
.build();
Interaction finalInteraction =
client
.interactions
.create(CreateInteractionRequestBody.of(finalParams))
.interaction()
.get();
System.out.println(finalInteraction.outputText().orElse(""));
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
setLightValuesDeclaration := interactions.NewTool(interactions.Function{
Name: genai.Ptr("set_light_values"),
Description: genai.Ptr("Sets the brightness and color temperature of a light."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"brightness": map[string]any{
"type": "integer",
"description": "Light level from 0 to 100",
},
"color_temp": map[string]any{
"type": "string",
"enum": []string{"daylight", "cool", "warm"},
"description": "Color temperature",
},
},
"required": []string{"brightness", "color_temp"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("Turn the lights down to a romantic level"),
Tools: []interactions.Tool{setLightValuesDeclaration},
},
),
})
if err != nil {
log.Fatal(err)
}
var fcStep *interactions.FunctionCallStep
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fcStep = step.FunctionCallStep
break
}
}
if fcStep != nil {
resultJson := `{"brightness": 25, "colorTemperature": "warm"}`
resultStep := interactions.NewStep(interactions.FunctionResultStep{
Name: genai.Ptr(fcStep.Name),
CallID: fcStep.ID,
Result: interactions.NewFunctionResultStepResultUnion([]interactions.FunctionResultSubcontent{
interactions.NewFunctionResultSubcontent(interactions.TextContent{
Text: resultJson,
}),
}),
})
finalResp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
PreviousInteractionID: resp.Interaction.ID,
Tools: []interactions.Tool{setLightValuesDeclaration},
Input: interactions.NewInteractionsInput([]interactions.Step{resultStep}),
},
),
})
if err != nil {
log.Fatal(err)
}
fmt.Println(finalResp.Interaction.GetOutputText())
}
}
無狀態函式呼叫
您也可以在無狀態模式中使用函式呼叫，方法是在用戶端管理對話記錄，並設定 store=false。
在無狀態模式中，您必須在每個後續要求的 input 欄位中傳遞完整的對話記錄。這份記錄必須包含：
1. 初始 user_input 步驟。
2. 在第 1 輪中，模型生成的所有步驟 (包括 thought 和 function_call 步驟) 都會完全按照收到的內容傳回。
3. 包含已執行函式輸出內容的 function_result 步驟。
Python
from google import genai
import json
client = genai.Client()
history = [
{
"type": "user_input",
"content": [{"type": "text", "text": "Turn the lights down to a romantic level"}]
}
]
interaction = client.interactions.create(
model="gemini-3.8-flash",
store=False,
input=history,
tools=[set_light_values_declaration],
)
for step in interaction.steps:
history.append(step.model_dump())
fc_step = next(s for s in interaction.steps if s.type == "function_call")
if fc_step.name == "set_light_values":
result = set_light_values(**fc_step.arguments)
history.append({
"type": "function_result",
"name": fc_step.name,
"call_id": fc_step.id,
"result": [{"type": "text", "text": json.dumps(result)}],
})
final_interaction = client.interactions.create(
model="gemini-3.8-flash",
store=False,
input=history,
tools=[set_light_values_declaration],
)
print(final_interaction.output_text)
JavaScript
import { GoogleGenAI } from "@google/genai";
const client = new GoogleGenAI({});
async function main() {
const history = [
{
type: "user_input",
content: [{ type: "text", text: "Turn the lights down to a romantic level" }]
}
];
const interaction = await client.interactions.create({
model: "gemini-3.8-flash",
store: false,
input: history,
tools: [setLightValuesTool],
});
history.push(...interaction.steps);
const fcStep = interaction.steps.find(s => s.type === 'function_call');
let result;
if (fcStep.name === 'set_light_values') {
result = setLightValues(fcStep.arguments.brightness, fcStep.arguments.color_temp);
}
history.push({
type: 'function_result',
name: fcStep.name,
call_id: fcStep.id,
result: [{ type: 'text', text: JSON.stringify(result) }]
});
const finalInteraction = await client.interactions.create({
model: 'gemini-3.8-flash',
store: false,
input: history,
tools: [setLightValuesTool],
});
console.log(finalInteraction.output_text);
}
await main();
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.FunctionResultStep;
import com.google.genai.gaos.models.interactions.FunctionResultStepResultUnion;
import com.google.genai.gaos.models.interactions.FunctionResultSubcontent;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.interactions.TextContent;
import com.google.genai.gaos.models.interactions.UserInputStep;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
Client client = new Client();
Map<String, Object> brightnessProp = new HashMap<>();
brightnessProp.put("type", "integer");
brightnessProp.put("description", "Light level from 0 to 100");
Map<String, Object> colorTempProp = new HashMap<>();
colorTempProp.put("type", "string");
colorTempProp.put("enum", Arrays.asList("daylight", "cool", "warm"));
colorTempProp.put("description", "Color temperature");
Map<String, Object> properties = new HashMap<>();
properties.put("brightness", brightnessProp);
properties.put("color_temp", colorTempProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("brightness", "color_temp"));
Function setLightValuesDeclaration =
Function.builder()
.name("set_light_values")
.description("Sets the brightness and color temperature of a light.")
.parameters(parameters)
.build();
List<Step> history = new ArrayList<>();
history.add(
UserInputStep.builder()
.content(
Arrays.asList(
TextContent.builder()
.text("Turn the lights down to a romantic level")
.build()))
.build());
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.store(false)
.input(InteractionsInput.ofStep(history))
.tools(Arrays.asList(setLightValuesDeclaration))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
FunctionCallStep fcStep = null;
if (interaction.steps().isPresent()) {
history.addAll(interaction.steps().get());
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
fcStep = (FunctionCallStep) step;
break;
}
}
}
if (fcStep != null) {
String resultJson = "{\"brightness\": 25, \"colorTemperature\": \"warm\"}";
history.add(
FunctionResultStep.builder()
.name(fcStep.name().orElse(""))
.callId(fcStep.id().orElse(""))
.result(
FunctionResultStepResultUnion.of(
Arrays.<FunctionResultSubcontent>asList(
TextContent.builder().text(resultJson).build())))
.build());
CreateModelInteraction finalParams =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.store(false)
.input(InteractionsInput.ofStep(history))
.tools(Arrays.asList(setLightValuesDeclaration))
.build();
Interaction finalInteraction =
client
.interactions
.create(CreateInteractionRequestBody.of(finalParams))
.interaction()
.get();
System.out.println(finalInteraction.outputText().orElse(""));
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
setLightValuesDeclaration := interactions.NewTool(interactions.Function{
Name: genai.Ptr("set_light_values"),
Description: genai.Ptr("Sets the brightness and color temperature of a light."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"brightness": map[string]any{
"type": "integer",
"description": "Light level from 0 to 100",
},
"color_temp": map[string]any{
"type": "string",
"enum": []string{"daylight", "cool", "warm"},
"description": "Color temperature",
},
},
"required": []string{"brightness", "color_temp"},
},
})
history := []interactions.Step{
interactions.NewStep(interactions.UserInputStep{
Content: []interactions.Content{
interactions.NewContent(interactions.TextContent{
Text: "Turn the lights down to a romantic level",
}),
},
}),
}
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Store: genai.Ptr(false),
Input: interactions.NewInteractionsInput(history),
Tools: []interactions.Tool{setLightValuesDeclaration},
},
),
})
if err != nil {
log.Fatal(err)
}
history = append(history, resp.Interaction.Steps...)
var fcStep *interactions.FunctionCallStep
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fcStep = step.FunctionCallStep
break
}
}
if fcStep != nil {
resultJson := `{"brightness": 25, "colorTemperature": "warm"}`
history = append(history, interactions.NewStep(interactions.FunctionResultStep{
Name: genai.Ptr(fcStep.Name),
CallID: fcStep.ID,
Result: interactions.NewFunctionResultStepResultUnion([]interactions.FunctionResultSubcontent{
interactions.NewFunctionResultSubcontent(interactions.TextContent{
Text: resultJson,
}),
}),
}))
finalResp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Store: genai.Ptr(false),
Input: interactions.NewInteractionsInput(history),
Tools: []interactions.Tool{setLightValuesDeclaration},
},
),
})
if err != nil {
log.Fatal(err)
}
fmt.Println(finalResp.Interaction.GetOutputText())
}
}
REST
# Turn 1: Send request with tools and store: false
RESPONSE1=$(curl -s -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"store": false,
"input": [
{
"type": "user_input",
"content": "Turn the lights down to a romantic level"
}
],
"tools": [{
"type": "function",
"name": "set_light_values",
"description": "Sets the brightness and color temperature of a light.",
"parameters": {
"type": "object",
"properties": {
"brightness": {"type": "integer", "description": "Light level from 0 to 100"},
"color_temp": {"type": "string", "enum": ["daylight", "cool", "warm"]}
},
"required": ["brightness", "color_temp"]
}
}]
}')
# Extract model steps (thought, function_call)
MODEL_STEPS=$(echo "$RESPONSE1" | jq '.steps')
# Extract function call details to execute
FC_NAME=$(echo "$RESPONSE1" | jq -r '.steps[] | select(.type=="function_call") | .name')
FC_ID=$(echo "$RESPONSE1" | jq -r '.steps[] | select(.type=="function_call") | .id')
# Assume local execution returns: {"brightness": 25, "colorTemperature": "warm"}
RESULT="{\"brightness\": 25, \"colorTemperature\": \"warm\"}"
# Reconstruct history for Turn 2
HISTORY=$(jq -n \
--argjson first_input '[{"type": "user_input", "content": "Turn the lights down to a romantic level"}]' \
--argjson model_steps "$MODEL_STEPS" \
--arg fc_name "$FC_NAME" \
--arg fc_id "$FC_ID" \
--arg result "$RESULT" \
'$first_input + $model_steps + [{"type": "function_result", "name": $fc_name, "call_id": $fc_id, "result": [{"type": "text", "text": $result}]}]')
# Turn 2: Send the full history
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d "{
\"model\": \"gemini-3.8-flash\",
\"store\": false,
\"input\": $HISTORY,
\"tools\": [{
\"type\": \"function\",
\"name\": \"set_light_values\",
\"description\": \"Sets the brightness and color temperature of a light.\",
\"parameters\": {
\"type\": \"object\",
\"properties\": {
\"brightness\": {\"type\": \"integer\"},
\"color_temp\": {\"type\": \"string\"}
},
\"required\": [\"brightness\", \"color_temp\"]
}
}]
}"
函式宣告
函式宣告會以工具形式傳遞，並包含：
type(字串)：自訂函式必須為"function"。name(字串)：不重複的函式名稱 (使用底線或駝峰式大小寫)。description(字串)：清楚說明函式的用途。parameters(物件)：函式預期的輸入參數。type(字串)：整體資料類型，例如object。properties(物件)：含有類型和說明的個別參數。required(陣列)：必要參數名稱。
使用思考模型呼叫函式
Gemini 3 系列模型會使用內部「思考」程序，提升函式呼叫功能。SDK 會自動處理想法簽章。
平行函式呼叫
如果多個函式彼此獨立，可以一次呼叫：
Python
power_disco_ball = {"type": "function", "name": "power_disco_ball", "description": "Powers the disco ball.",
"parameters": {"type": "object", "properties": {"power": {"type": "boolean"}}, "required": ["power"]}}
start_music = {"type": "function", "name": "start_music", "description": "Play music.",
"parameters": {"type": "object", "properties": {"energetic": {"type": "boolean"}, "loud": {"type": "boolean"}}, "required": ["energetic", "loud"]}}
dim_lights = {"type": "function", "name": "dim_lights", "description": "Dim the lights.",
"parameters": {"type": "object", "properties": {"brightness": {"type": "number"}}, "required": ["brightness"]}}
client = genai.Client()
interaction = client.interactions.create(
model="gemini-3.8-flash",
input="Turn this place into a party!",
tools=[power_disco_ball, start_music, dim_lights],
generation_config={"tool_choice": "any"},
)
for step in interaction.steps:
if step.type == "function_call":
args = ", ".join(f"{key}={val}" for key, val in step.arguments.items())
print(f"{step.name}({args})")
JavaScript
const powerDiscoBall = { type: 'function', name: 'power_disco_ball', description: 'Powers the disco ball.',
parameters: { type: 'object', properties: { power: { type: 'boolean' } }, required: ['power'] } };
const startMusic = { type: 'function', name: 'start_music', description: 'Play music.',
parameters: { type: 'object', properties: { energetic: { type: 'boolean' }, loud: { type: 'boolean' } }, required: ['energetic', 'loud'] } };
const dimLights = { type: 'function', name: 'dim_lights', description: 'Dim the lights.',
parameters: { type: 'object', properties: { brightness: { type: 'number' } }, required: ['brightness'] } };
const interaction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: 'Turn this place into a party!',
tools: [powerDiscoBall, startMusic, dimLights],
generation_config: { tool_choice: 'any' },
});
for (const step of interaction.steps) {
if (step.type === 'function_call') {
console.log(`${step.name}(${JSON.stringify(step.arguments)})`);
}
}
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.GenerationConfig;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.interactions.ToolChoice;
import com.google.genai.gaos.models.interactions.ToolChoiceType;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.Collections;
import java.util.HashMap;
import java.util.Map;
Client client = new Client();
Map<String, Object> discoParams = new HashMap<>();
discoParams.put("type", "object");
discoParams.put(
"properties", Collections.singletonMap("power", Collections.singletonMap("type", "boolean")));
discoParams.put("required", Arrays.asList("power"));
Function powerDiscoBall =
Function.builder()
.name("power_disco_ball")
.description("Powers the disco ball.")
.parameters(discoParams)
.build();
Map<String, Object> musicProps = new HashMap<>();
musicProps.put("energetic", Collections.singletonMap("type", "boolean"));
musicProps.put("loud", Collections.singletonMap("type", "boolean"));
Map<String, Object> musicParams = new HashMap<>();
musicParams.put("type", "object");
musicParams.put("properties", musicProps);
musicParams.put("required", Arrays.asList("energetic", "loud"));
Function startMusic =
Function.builder()
.name("start_music")
.description("Play music.")
.parameters(musicParams)
.build();
Map<String, Object> lightsParams = new HashMap<>();
lightsParams.put("type", "object");
lightsParams.put(
"properties",
Collections.singletonMap("brightness", Collections.singletonMap("type", "number")));
lightsParams.put("required", Arrays.asList("brightness"));
Function dimLights =
Function.builder()
.name("dim_lights")
.description("Dim the lights.")
.parameters(lightsParams)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(InteractionsInput.of("Turn this place into a party!"))
.tools(Arrays.asList(powerDiscoBall, startMusic, dimLights))
.generationConfig(
GenerationConfig.builder().toolChoice(ToolChoice.of(ToolChoiceType.ANY)).build())
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
FunctionCallStep fc = (FunctionCallStep) step;
System.out.println(fc.name().orElse("") + "(" + fc.arguments().orElse(null) + ")");
}
}
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
powerDiscoBall := interactions.NewTool(interactions.Function{
Name: genai.Ptr("power_disco_ball"),
Description: genai.Ptr("Powers the disco ball."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"power": map[string]any{"type": "boolean"},
},
"required": []string{"power"},
},
})
startMusic := interactions.NewTool(interactions.Function{
Name: genai.Ptr("start_music"),
Description: genai.Ptr("Play music."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"energetic": map[string]any{"type": "boolean"},
"loud": map[string]any{"type": "boolean"},
},
"required": []string{"energetic", "loud"},
},
})
dimLights := interactions.NewTool(interactions.Function{
Name: genai.Ptr("dim_lights"),
Description: genai.Ptr("Dim the lights."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"brightness": map[string]any{"type": "number"},
},
"required": []string{"brightness"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("Turn this place into a party!"),
Tools: []interactions.Tool{powerDiscoBall, startMusic, dimLights},
GenerationConfig: &interactions.GenerationConfig{
ToolChoice: genai.Ptr(interactions.NewToolChoice(interactions.ToolChoiceTypeAny)),
},
},
),
})
if err != nil {
log.Fatal(err)
}
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fc := step.FunctionCallStep
fmt.Printf("%s(%v)\n", fc.Name, fc.Arguments)
}
}
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"input": "Turn this place into a party!",
"tools": [
{
"type": "function",
"name": "power_disco_ball",
"description": "Powers the disco ball.",
"parameters": {
"type": "object",
"properties": {
"power": {"type": "boolean"}
},
"required": ["power"]
}
},
{
"type": "function",
"name": "start_music",
"description": "Play music.",
"parameters": {
"type": "object",
"properties": {
"energetic": {"type": "boolean"},
"loud": {"type": "boolean"}
},
"required": ["energetic", "loud"]
}
},
{
"type": "function",
"name": "dim_lights",
"description": "Dim the lights.",
"parameters": {
"type": "object",
"properties": {
"brightness": {"type": "number"}
},
"required": ["brightness"]
}
}
]
}'
組合式函式呼叫
將多個函式呼叫串聯在一起，處理複雜要求 (例如先取得位置資訊，再取得該位置的天氣)。
Python
get_weather_forecast_declaration = {
"type": "function",
"name": "get_weather_forecast",
"description": "Gets the current weather temperature for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {"type": "string", "description": "The location"},
},
"required": ["location"],
},
}
set_thermostat_temperature_declaration = {
"type": "function",
"name": "set_thermostat_temperature",
"description": "Sets the thermostat to a desired temperature.",
"parameters": {
"type": "object",
"properties": {
"temperature": {
"type": "integer",
"description": "The temperature in Celsius",
},
},
"required": ["temperature"],
},
}
client = genai.Client()
interaction = client.interactions.create(
model="gemini-3.8-flash",
input="If it's warmer than 20°C in London, set the thermostat to 20°C, otherwise 18°C.",
tools=[
get_weather_forecast_declaration,
set_thermostat_temperature_declaration,
],
)
for step in interaction.steps:
if step.type == "function_call":
print(f"Function to call: {step.name}")
print(f"Arguments: {step.arguments}")
elif hasattr(step, "content") and step.content:
for part in step.content:
if hasattr(part, "text"):
print(part.text)
JavaScript
import { GoogleGenAI } from '@google/genai';
const client = new GoogleGenAI({});
const getWeatherForecastTool = {
type: 'function',
name: 'get_weather_forecast',
description: 'Gets the current weather temperature for a given location.',
parameters: {
type: 'object',
properties: {
location: { type: 'string', description: 'The location' },
},
required: ['location'],
},
};
const setThermostatTemperatureTool = {
type: 'function',
name: 'set_thermostat_temperature',
description: 'Sets the thermostat to a desired temperature.',
parameters: {
type: 'object',
properties: {
temperature: {
type: 'integer',
description: 'The temperature in Celsius',
},
},
required: ['temperature'],
},
};
const interaction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: "If it's warmer than 20°C in London, set the thermostat to 20°C, otherwise 18°C.",
tools: [
getWeatherForecastTool,
setThermostatTemperatureTool,
],
});
for (const step of interaction.steps) {
if (step.type === 'function_call') {
console.log(`Function to call: ${step.name}`);
console.log(`Arguments: ${JSON.stringify(step.arguments)}`);
} else if (step.content) {
for (const part of step.content) {
if (part.text) {
console.log(part.text);
}
}
}
}
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.Content;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.ModelOutputStep;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.interactions.TextContent;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
Client client = new Client();
Map<String, Object> locationProp = new HashMap<>();
locationProp.put("type", "string");
locationProp.put("description", "The location");
Map<String, Object> weatherProps = new HashMap<>();
weatherProps.put("location", locationProp);
Map<String, Object> weatherParams = new HashMap<>();
weatherParams.put("type", "object");
weatherParams.put("properties", weatherProps);
weatherParams.put("required", Arrays.asList("location"));
Function getWeatherForecastDeclaration =
Function.builder()
.name("get_weather_forecast")
.description("Gets the current weather temperature for a given location.")
.parameters(weatherParams)
.build();
Map<String, Object> tempProp = new HashMap<>();
tempProp.put("type", "integer");
tempProp.put("description", "The temperature in Celsius");
Map<String, Object> thermostatProps = new HashMap<>();
thermostatProps.put("temperature", tempProp);
Map<String, Object> thermostatParams = new HashMap<>();
thermostatParams.put("type", "object");
thermostatParams.put("properties", thermostatProps);
thermostatParams.put("required", Arrays.asList("temperature"));
Function setThermostatTemperatureDeclaration =
Function.builder()
.name("set_thermostat_temperature")
.description("Sets the thermostat to a desired temperature.")
.parameters(thermostatParams)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(
InteractionsInput.of(
"If it's warmer than 20°C in London, set the thermostat to 20°C, otherwise 18°C."))
.tools(Arrays.asList(getWeatherForecastDeclaration, setThermostatTemperatureDeclaration))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
FunctionCallStep fc = (FunctionCallStep) step;
System.out.println("Function to call: " + fc.name().orElse(""));
System.out.println("Arguments: " + fc.arguments().orElse(null));
} else if (step instanceof ModelOutputStep) {
ModelOutputStep outputStep = (ModelOutputStep) step;
if (outputStep.content().isPresent()) {
for (Content part : outputStep.content().get()) {
if (part instanceof TextContent) {
System.out.println(((TextContent) part).text().orElse(""));
}
}
}
}
}
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
getWeatherForecastDeclaration := interactions.NewTool(interactions.Function{
Name: genai.Ptr("get_weather_forecast"),
Description: genai.Ptr("Gets the current weather temperature for a given location."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"location": map[string]any{
"type": "string",
"description": "The location",
},
},
"required": []string{"location"},
},
})
setThermostatTemperatureDeclaration := interactions.NewTool(interactions.Function{
Name: genai.Ptr("set_thermostat_temperature"),
Description: genai.Ptr("Sets the thermostat to a desired temperature."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"temperature": map[string]any{
"type": "integer",
"description": "The temperature in Celsius",
},
},
"required": []string{"temperature"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("If it's warmer than 20°C in London, set the thermostat to 20°C, otherwise 18°C."),
Tools: []interactions.Tool{getWeatherForecastDeclaration, setThermostatTemperatureDeclaration},
},
),
})
if err != nil {
log.Fatal(err)
}
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fc := step.FunctionCallStep
fmt.Println("Function to call:", fc.Name)
fmt.Println("Arguments:", fc.Arguments)
} else if step.ModelOutputStep != nil {
for _, part := range step.ModelOutputStep.Content {
if part.TextContent != nil {
fmt.Println(part.TextContent.Text)
}
}
}
}
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"input": "If it'\''s warmer than 20°C in London, set the thermostat to 20°C, otherwise 18°C.",
"tools": [
{
"type": "function",
"name": "get_weather_forecast",
"description": "Gets the current weather temperature for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {"type": "string"}
},
"required": ["location"]
}
},
{
"type": "function",
"name": "set_thermostat_temperature",
"description": "Sets the thermostat to a desired temperature.",
"parameters": {
"type": "object",
"properties": {
"temperature": {"type": "integer"}
},
"required": ["temperature"]
}
}
]
}'
函式呼叫模式
在 generation_config 中使用 tool_choice 控制模型使用工具的方式：
auto(預設)：模型會判斷是否要呼叫函式或直接回應。any：模型一律會預測函式呼叫。none：模型不得呼叫函式。validated：模型會確保函式結構定義符合規定。
Python
generation_config = {
"tool_choice": {
"allowed_tools": {
"mode": "any",
"tools": ["get_current_temperature"]
}
}
}
JavaScript
const generation_config = {
tool_choice: {
allowed_tools: {
mode: 'any',
tools: ['get_current_temperature']
}
}
};
Java
import com.google.genai.gaos.models.interactions.AllowedTools;
import com.google.genai.gaos.models.interactions.GenerationConfig;
import com.google.genai.gaos.models.interactions.ToolChoice;
import com.google.genai.gaos.models.interactions.ToolChoiceConfig;
import com.google.genai.gaos.models.interactions.ToolChoiceType;
import java.util.Arrays;
GenerationConfig generationConfig =
GenerationConfig.builder()
.toolChoice(
ToolChoice.of(
ToolChoiceConfig.builder()
.allowedTools(
AllowedTools.builder()
.mode(ToolChoiceType.ANY)
.tools(Arrays.asList("get_current_temperature"))
.build())
.build()))
.build();
Go
package main
import (
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
)
func main() {
generationConfig := interactions.GenerationConfig{
ToolChoice: genai.Ptr(interactions.NewToolChoice(interactions.ToolChoiceConfig{
AllowedTools: &interactions.AllowedTools{
Mode: interactions.ToolChoiceTypeAny.ToPointer(),
Tools: []string{"get_current_temperature"},
},
})),
}
_ = generationConfig
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"input": "What is the temperature in Boston?",
"tools": [{
"type": "function",
"name": "get_current_temperature",
"description": "Gets the current temperature for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {"type": "string"}
},
"required": ["location"]
}
}],
"generation_config": {
"tool_choice": {
"allowed_tools": {
"mode": "any",
"tools": ["get_current_temperature"]
}
}
}
}'
使用多功能工具
您可以啟用多項工具，在同一項要求中結合內建工具和函式呼叫。Gemini 3 模型可將內建工具與函式呼叫功能結合，傳遞 previous_interaction_id 會自動傳遞內建工具環境。
Python
from google import genai
import json
client = genai.Client()
get_weather = {
"type": "function",
"name": "get_weather",
"description": "Gets the weather for a requested city.",
"parameters": {
"type": "object",
"properties": {
"city": {
"type": "string",
"description": "The city and state, e.g. Utqiaġvik, Alaska",
},
},
"required": ["city"],
},
}
tools = [
{"type": "google_search"},
get_weather
]
interaction = client.interactions.create(
model="gemini-3.8-flash",
input="What is the northernmost city in the United States? What's the weather like there today?",
tools=tools
)
for step in interaction.steps:
if step.type == "function_call":
print(f"Function call: {step.name} (ID: {step.id})")
result = {"response": "Very cold. 22 degrees Fahrenheit."}
interaction_2 = client.interactions.create(
model="gemini-3.8-flash",
previous_interaction_id=interaction.id,
tools=tools,
input=[{
"type": "function_result",
"name": step.name,
"call_id": step.id,
"result": [{"type": "text", "text": json.dumps(result)}]
}]
)
print(interaction_2.output_text)
JavaScript
import { GoogleGenAI } from '@google/genai';
const client = new GoogleGenAI({});
const weatherTool = {
type: 'function',
name: 'get_weather',
description: 'Gets the weather for a given location.',
parameters: {
type: 'object',
properties: {
location: {
type: 'string',
description: 'The city and state, e.g. San Francisco, CA',
},
},
required: ['location'],
},
};
const tools = [
{ type: 'google_search' }, // Built-in tool
weatherTool,
];
const interaction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: "What is the northernmost city in the United States? What's the weather like there today?",
tools: tools,
});
for (const step of interaction.steps) {
if (step.type === 'function_call') {
console.log(`Function call: ${step.name} (ID: ${step.id})`);
const result = { response: 'Very cold. 22 degrees Fahrenheit.' };
const interaction_2 = await client.interactions.create({
model: 'gemini-3.8-flash',
previous_interaction_id: interaction.id,
tools: tools,
input: [
{
type: 'function_result',
name: step.name,
call_id: step.id,
result: [{ type: 'text', text: JSON.stringify(result) }],
},
],
});
console.log(interaction_2.output_text);
}
}
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.FunctionResultStep;
import com.google.genai.gaos.models.interactions.FunctionResultStepResultUnion;
import com.google.genai.gaos.models.interactions.FunctionResultSubcontent;
import com.google.genai.gaos.models.interactions.GoogleSearch;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.interactions.TextContent;
import com.google.genai.gaos.models.interactions.Tool;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
Client client = new Client();
Map<String, Object> cityProp = new HashMap<>();
cityProp.put("type", "string");
cityProp.put("description", "The city and state, e.g. Utqiaġvik, Alaska");
Map<String, Object> properties = new HashMap<>();
properties.put("city", cityProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("city"));
Function getWeather =
Function.builder()
.name("get_weather")
.description("Gets the weather for a requested city.")
.parameters(parameters)
.build();
List<Tool> tools = Arrays.asList(GoogleSearch.builder().build(), getWeather);
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(
InteractionsInput.of(
"What is the northernmost city in the United States? What's the weather like there today?"))
.tools(tools)
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
FunctionCallStep fcStep = (FunctionCallStep) step;
System.out.printf(
"Function call: %s (ID: %s)%n", fcStep.name().orElse(""), fcStep.id().orElse(""));
String resultJson = "{\"response\": \"Very cold. 22 degrees Fahrenheit.\"}";
FunctionResultStep resultStep =
FunctionResultStep.builder()
.name(fcStep.name().orElse(""))
.callId(fcStep.id().orElse(""))
.result(
FunctionResultStepResultUnion.of(
Arrays.<FunctionResultSubcontent>asList(
TextContent.builder().text(resultJson).build())))
.build();
CreateModelInteraction params2 =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.previousInteractionId(interaction.id().orElse(""))
.tools(tools)
.input(InteractionsInput.ofStep(Arrays.<Step>asList(resultStep)))
.build();
Interaction interaction2 =
client
.interactions
.create(CreateInteractionRequestBody.of(params2))
.interaction()
.get();
System.out.println(interaction2.outputText().orElse(""));
}
}
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
getWeather := interactions.NewTool(interactions.Function{
Name: genai.Ptr("get_weather"),
Description: genai.Ptr("Gets the weather for a requested city."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"city": map[string]any{
"type": "string",
"description": "The city and state, e.g. Utqiaġvik, Alaska",
},
},
"required": []string{"city"},
},
})
tools := []interactions.Tool{
interactions.NewTool(interactions.GoogleSearch{}),
getWeather,
}
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("What is the northernmost city in the United States? What's the weather like there today?"),
Tools: tools,
},
),
})
if err != nil {
log.Fatal(err)
}
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
fcStep := step.FunctionCallStep
fmt.Printf("Function call: %s (ID: %s)\n", fcStep.Name, fcStep.ID)
resultJson := `{"response": "Very cold. 22 degrees Fahrenheit."}`
resultStep := interactions.NewStep(interactions.FunctionResultStep{
Name: genai.Ptr(fcStep.Name),
CallID: fcStep.ID,
Result: interactions.NewFunctionResultStepResultUnion([]interactions.FunctionResultSubcontent{
interactions.NewFunctionResultSubcontent(interactions.TextContent{
Text: resultJson,
}),
}),
})
resp2, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
PreviousInteractionID: resp.Interaction.ID,
Tools: tools,
Input: interactions.NewInteractionsInput([]interactions.Step{resultStep}),
},
),
})
if err != nil {
log.Fatal(err)
}
fmt.Println(resp2.Interaction.GetOutputText())
}
}
}
REST
# Turn 1: Send request with built-in google_search tool and custom weather tool
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"input": "What is the northernmost city in the United States? What'\''s the weather like there today?",
"tools": [
{"type": "google_search"},
{
"type": "function",
"name": "get_weather",
"description": "Gets the weather for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {"type": "string", "description": "The city and state, e.g. San Francisco, CA"}
},
"required": ["location"]
}
}
]
}'
# Turn 2: Provide function result and pass previous_interaction_id
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"previous_interaction_id": "INTERACTION_ID",
"tools": [
{"type": "google_search"},
{
"type": "function",
"name": "get_weather",
"description": "Gets the weather for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {"type": "string", "description": "The city and state, e.g. San Francisco, CA"}
},
"required": ["location"]
}
}
],
"input": [
{
"type": "function_result",
"name": "get_weather",
"call_id": "call_123",
"result": [{"type": "text", "text": "{\"response\": \"Very cold. 22 degrees Fahrenheit.\"}"}]
}
]
}'
多模態函式回覆
如果是 Gemini 3 系列模型，您可以在傳送給模型的回覆部分中加入多模態內容。模型可以在下一個回合處理這類多模態內容，進而生成更實用的回覆。
如要在函式回覆中加入多模態資料，請在 function_result 步驟的 result 欄位中，將資料加入一或多個內容區塊。每個內容區塊都必須指定 type (例如 "text"、"image")。
以下範例說明如何在互動中，將含有圖片資料的函式回應傳送回模型：
Python
import base64
from google import genai
import requests
client = genai.Client()
tool_call = next(s for s in interaction.steps if s.type == "function_call")
image_path = "https://goo.gle/instrument-img"
image_bytes = requests.get(image_path).content
base64_image_data = base64.b64encode(image_bytes).decode("utf-8")
final_interaction = client.interactions.create(
model="gemini-3.8-flash",
previous_interaction_id=interaction.id,
input=[
{
"type": "function_result",
"name": tool_call.name,
"call_id": tool_call.id,
"result": [
{"type": "text", "text": "instrument.jpg"},
{
"type": "image",
"mime_type": "image/jpeg",
"data": base64_image_data,
},
],
}
],
)
print(final_interaction.output_text)
JavaScript
import { GoogleGenAI } from "@google/genai";
const client = new GoogleGenAI({});
const toolCall = interaction.steps.find(s => s.type === 'function_call');
const base64ImageData = "BASE64_IMAGE_DATA";
const finalInteraction = await client.interactions.create({
model: 'gemini-3.8-flash',
previous_interaction_id: interaction.id,
input: [{
type: 'function_result',
name: toolCall.name,
call_id: toolCall.id,
result: [
{ type: 'text', text: 'instrument.jpg' },
{
type: 'image',
mime_type: 'image/jpeg',
data: base64ImageData,
}
]
}]
});
console.log(finalInteraction.output_text);
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.FunctionResultStep;
import com.google.genai.gaos.models.interactions.FunctionResultStepResultUnion;
import com.google.genai.gaos.models.interactions.FunctionResultSubcontent;
import com.google.genai.gaos.models.interactions.ImageContent;
import com.google.genai.gaos.models.interactions.ImageContentMimeType;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.interactions.TextContent;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;
Client client = new Client();
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
Function getInstrumentImage =
Function.builder()
.name("get_instrument_image")
.description("Gets an image of an instrument.")
.parameters(parameters)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(InteractionsInput.of("Show me the instrument."))
.tools(Arrays.asList(getInstrumentImage))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
FunctionCallStep toolCall = null;
if (interaction.steps().isPresent()) {
for (Step step : interaction.steps().get()) {
if (step instanceof FunctionCallStep) {
toolCall = (FunctionCallStep) step;
break;
}
}
}
if (toolCall != null) {
String base64ImageData = "BASE64_IMAGE_DATA";
FunctionResultStep resultStep =
FunctionResultStep.builder()
.name(toolCall.name().orElse(""))
.callId(toolCall.id().orElse(""))
.result(
FunctionResultStepResultUnion.of(
Arrays.<FunctionResultSubcontent>asList(
TextContent.builder().text("instrument.jpg").build(),
ImageContent.builder()
.mimeType(ImageContentMimeType.IMAGE_JPEG)
.data(base64ImageData)
.build())))
.build();
CreateModelInteraction finalParams =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.previousInteractionId(interaction.id().orElse(""))
.input(InteractionsInput.ofStep(Arrays.<Step>asList(resultStep)))
.build();
Interaction finalInteraction =
client
.interactions
.create(CreateInteractionRequestBody.of(finalParams))
.interaction()
.get();
System.out.println(finalInteraction.outputText().orElse(""));
}
Go
package main
import (
"context"
"fmt"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
getInstrumentImage := interactions.NewTool(interactions.Function{
Name: genai.Ptr("get_instrument_image"),
Description: genai.Ptr("Gets an image of an instrument."),
Parameters: map[string]any{
"type": "object",
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("Show me the instrument."),
Tools: []interactions.Tool{getInstrumentImage},
},
),
})
if err != nil {
log.Fatal(err)
}
var toolCall *interactions.FunctionCallStep
for _, step := range resp.Interaction.Steps {
if step.FunctionCallStep != nil {
toolCall = step.FunctionCallStep
break
}
}
if toolCall != nil {
base64ImageData := "BASE64_IMAGE_DATA"
resultStep := interactions.NewStep(interactions.FunctionResultStep{
Name: genai.Ptr(toolCall.Name),
CallID: toolCall.ID,
Result: interactions.NewFunctionResultStepResultUnion([]interactions.FunctionResultSubcontent{
interactions.NewFunctionResultSubcontent(interactions.TextContent{
Text: "instrument.jpg",
}),
interactions.NewFunctionResultSubcontent(interactions.ImageContent{
MimeType: interactions.ImageContentMimeTypeImageJpeg.ToPointer(),
Data: genai.Ptr(base64ImageData),
}),
}),
})
finalResp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
PreviousInteractionID: resp.Interaction.ID,
Input: interactions.NewInteractionsInput([]interactions.Step{resultStep}),
},
),
})
if err != nil {
log.Fatal(err)
}
fmt.Println(finalResp.Interaction.GetOutputText())
}
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-H 'Content-Type: application/json' \
-d '{
"model": "gemini-3.8-flash",
"previous_interaction_id": "INTERACTION_ID",
"input": [
{
"type": "function_result",
"name": "get_image",
"call_id": "call_123",
"result": [
{"type": "text", "text": "instrument.jpg"},
{
"type": "image",
"mime_type": "image/jpeg",
"data": "BASE64_IMAGE_DATA"
}
]
}
]
}'
使用結構化輸出內容呼叫函式
對於 Gemini 3 系列模型，請將函式呼叫與結構化輸出結合，確保回覆格式一致。
遠端 MCP (Model Context Protocol)
Interactions API 支援連線至遠端 MCP 伺服器，讓模型存取外部工具和服務。您可以在工具設定中提供伺服器 name 和 url。
使用遠端 MCP 時，請注意下列限制：
- 伺服器類型：遠端 MCP 僅適用於可串流的 HTTP 伺服器。系統不支援 SSE (伺服器傳送事件) 伺服器。
- 命名：MCP 伺服器名稱不得包含
-字元。請改用snake_case伺服器名稱。
| 欄位 | 類型 | 必要 | 說明 |
|---|---|---|---|
type |
string |
是 | 必須為 "mcp_server"。 |
name |
string |
否 | MCP 伺服器的顯示名稱。 |
url |
string |
否 | MCP 伺服器端點的完整網址。 |
headers |
object |
否 | 以 HTTP 標頭形式傳送至伺服器的鍵/值配對 (例如驗證權杖)。 |
allowed_tools |
array |
否 | 限制代理程式可呼叫伺服器的哪些工具。 |
範例
Python
from google import genai
client = genai.Client()
interaction = client.interactions.create(
model="gemini-3.8-flash",
input="Check the weather in San Francisco.",
tools=[
{
"type": "mcp_server",
"name": "weather",
"url": "https://gemini-api-demos.uc.r.appspot.com/mcp",
}
]
)
JavaScript
import { GoogleGenAI } from '@google/genai';
const client = new GoogleGenAI({});
const interaction = await client.interactions.create({
model: 'gemini-3.8-flash',
input: 'Check the weather in San Francisco.',
tools: [
{
type: 'mcp_server',
name: 'weather',
url: 'https://gemini-api-demos.uc.r.appspot.com/mcp'
}
]
});
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Interaction;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.MCPServer;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import java.util.Arrays;
Client client = new Client();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(InteractionsInput.of("Check the weather in San Francisco."))
.tools(
Arrays.asList(
MCPServer.builder()
.name("weather")
.url("https://gemini-api-demos.uc.r.appspot.com/mcp")
.build()))
.build();
Interaction interaction =
client.interactions.create(CreateInteractionRequestBody.of(params)).interaction().get();
Go
package main
import (
"context"
"log"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("Check the weather in San Francisco."),
Tools: []interactions.Tool{
interactions.NewTool(interactions.MCPServer{
Name: genai.Ptr("weather"),
URL: genai.Ptr("https://gemini-api-demos.uc.r.appspot.com/mcp"),
}),
},
},
),
})
if err != nil {
log.Fatal(err)
}
_ = resp
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions" \
-H "Content-Type: application/json" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-d '{
"model": "gemini-3.8-flash",
"input": "Check the weather in San Francisco.",
"tools": [
{
"type": "mcp_server",
"name": "weather",
"url": "https://gemini-api-demos.uc.r.appspot.com/mcp"
}
]
}'
串流工具呼叫
使用串流工具時，模型會在串流中產生一系列 step.delta 事件，做為函式呼叫。工具引數可使用 arguments 串流為部分引數。您必須彙整這些差異，才能重建完整的工具呼叫，然後執行這些呼叫。
Python
import json
from google import genai
client = genai.Client()
weather_tool = {
"type": "function",
"name": "get_weather",
"description": "Gets the weather for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {"type": "string", "description": "The city and state"}
},
"required": ["location"]
}
}
stream = client.interactions.create(
model="gemini-3.8-flash",
input="What is the weather in Paris?",
tools=[weather_tool],
stream=True
)
current_calls = {}
tool_calls = []
for event in stream:
if event.event_type == "step.start":
if event.step.type == "function_call":
current_calls[event.index] = {
"id": event.step.id,
"name": event.step.name,
"arguments": ""
}
if hasattr(event.step, "arguments") and event.step.arguments:
if isinstance(event.step.arguments, dict):
current_calls[event.index]["arguments"] = json.dumps(event.step.arguments)
else:
current_calls[event.index]["arguments"] = event.step.arguments
elif event.event_type == "step.delta":
if event.delta.type == "arguments":
if event.index in current_calls:
current_calls[event.index]["arguments"] += event.delta.partial_arguments
elif event.delta.type == "text":
print(event.delta.text, end="", flush=True)
elif event.event_type == "interaction.completed":
for index, call in current_calls.items():
args = call["arguments"]
if args:
args = json.loads(args)
else:
args = {}
tool_calls.append({
"type": "function_call",
"id": call["id"],
"name": call["name"],
"arguments": args
})
print(f"\nFinal tool calls ready to execute:")
print(json.dumps(tool_calls, indent=2))
JavaScript
import { GoogleGenAI } from '@google/genai';
const client = new GoogleGenAI({});
const weatherTool = {
type: 'function',
name: 'get_weather',
description: 'Gets the weather for a given location.',
parameters: {
type: 'object',
properties: {
location: { type: 'string', description: 'The city and state' }
},
required: ['location']
}
};
const stream = await client.interactions.create({
model: 'gemini-3.8-flash',
input: 'What is the weather in Paris?',
tools: [weatherTool],
stream: true,
});
const currentCalls = new Map();
let toolCalls = [];
for await (const event of stream) {
const evType = event.event_type;
if (evType === 'step.start') {
if (event.step.type === 'function_call') {
currentCalls.set(event.index, {
id: event.step.id,
name: event.step.name,
arguments: ''
});
if (event.step.arguments) {
if (typeof event.step.arguments === 'object') {
currentCalls.get(event.index).arguments = JSON.stringify(event.step.arguments);
} else {
currentCalls.get(event.index).arguments = event.step.arguments;
}
}
}
} else if (evType === 'step.delta') {
if (event.delta.type === 'arguments') {
if (currentCalls.has(event.index)) {
currentCalls.get(event.index).arguments += event.delta.partial_arguments;
}
} else if (event.delta.type === 'text') {
process.stdout.write(event.delta.text);
}
} else if (evType === 'interaction.completed' || evType === 'interaction.complete') {
toolCalls = Array.from(currentCalls.values()).map(call => ({
type: 'function_call',
id: call.id,
name: call.name,
arguments: call.arguments ? JSON.parse(call.arguments) : {}
}));
console.log('\nFinal tool calls ready to execute:');
console.log(JSON.stringify(toolCalls, null, 2));
}
}
Java
import com.google.genai.Client;
import com.google.genai.gaos.models.interactions.ArgumentsDelta;
import com.google.genai.gaos.models.interactions.CreateModelInteraction;
import com.google.genai.gaos.models.interactions.Function;
import com.google.genai.gaos.models.interactions.FunctionCallStep;
import com.google.genai.gaos.models.interactions.InteractionCompletedEvent;
import com.google.genai.gaos.models.interactions.InteractionSSEEvent;
import com.google.genai.gaos.models.interactions.InteractionSSEStreamEvent;
import com.google.genai.gaos.models.interactions.InteractionsInput;
import com.google.genai.gaos.models.interactions.Model;
import com.google.genai.gaos.models.interactions.Step;
import com.google.genai.gaos.models.interactions.StepDelta;
import com.google.genai.gaos.models.interactions.StepDeltaData;
import com.google.genai.gaos.models.interactions.StepStart;
import com.google.genai.gaos.models.interactions.TextDelta;
import com.google.genai.gaos.models.operations.CreateInteractionRequestBody;
import com.google.genai.gaos.models.operations.CreateInteractionResponse;
import com.google.genai.gaos.utils.EventStream;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
Client client = new Client();
Map<String, Object> locationProp = new HashMap<>();
locationProp.put("type", "string");
locationProp.put("description", "The city and state");
Map<String, Object> properties = new HashMap<>();
properties.put("location", locationProp);
Map<String, Object> parameters = new HashMap<>();
parameters.put("type", "object");
parameters.put("properties", properties);
parameters.put("required", Arrays.asList("location"));
Function weatherTool =
Function.builder()
.name("get_weather")
.description("Gets the weather for a given location.")
.parameters(parameters)
.build();
CreateModelInteraction params =
CreateModelInteraction.builder()
.model(Model.of("gemini-3.8-flash"))
.input(InteractionsInput.of("What is the weather in Paris?"))
.tools(Arrays.asList(weatherTool))
.stream(true)
.build();
CreateInteractionResponse response =
client.interactions.create(CreateInteractionRequestBody.of(params));
Map<Integer, Map<String, Object>> currentCalls = new HashMap<>();
List<Map<String, Object>> toolCalls = new ArrayList<>();
try (EventStream<InteractionSSEStreamEvent> events = response.events()) {
for (InteractionSSEStreamEvent streamEvent : events) {
InteractionSSEEvent event = streamEvent.data().orElse(null);
if (event instanceof StepStart) {
StepStart stepStart = (StepStart) event;
Step step = stepStart.step().orElse(null);
if (step instanceof FunctionCallStep) {
FunctionCallStep fcStep = (FunctionCallStep) step;
int idx = stepStart.index().orElse(0);
Map<String, Object> callInfo = new HashMap<>();
callInfo.put("id", fcStep.id().orElse(""));
callInfo.put("name", fcStep.name().orElse(""));
callInfo.put("arguments", new StringBuilder());
if (fcStep.arguments().isPresent() && !fcStep.arguments().get().isEmpty()) {
((StringBuilder) callInfo.get("arguments")).append(fcStep.arguments().get().toString());
}
currentCalls.put(idx, callInfo);
}
} else if (event instanceof StepDelta) {
StepDelta stepDelta = (StepDelta) event;
StepDeltaData delta = stepDelta.delta().orElse(null);
int idx = stepDelta.index().orElse(0);
if (delta instanceof ArgumentsDelta) {
String partialArgs = ((ArgumentsDelta) delta).arguments().orElse("");
if (currentCalls.containsKey(idx)) {
((StringBuilder) currentCalls.get(idx).get("arguments")).append(partialArgs);
}
} else if (delta instanceof TextDelta) {
((TextDelta) delta).text().ifPresent(System.out::print);
}
} else if (event instanceof InteractionCompletedEvent) {
for (Map<String, Object> call : currentCalls.values()) {
Map<String, Object> finishedCall = new HashMap<>();
finishedCall.put("type", "function_call");
finishedCall.put("id", call.get("id"));
finishedCall.put("name", call.get("name"));
finishedCall.put("arguments", call.get("arguments").toString());
toolCalls.add(finishedCall);
}
System.out.println("\nFinal tool calls ready to execute:");
System.out.println(toolCalls);
}
}
}
Go
package main
import (
"context"
"fmt"
"log"
"strings"
"google.golang.org/genai"
"google.golang.org/genai/interactions/models/interactions"
"google.golang.org/genai/interactions/models/operations"
)
type callState struct {
id string
name string
arguments *strings.Builder
}
func main() {
ctx := context.Background()
client, err := genai.NewClient(ctx, nil)
if err != nil {
log.Fatal(err)
}
weatherTool := interactions.NewTool(interactions.Function{
Name: genai.Ptr("get_weather"),
Description: genai.Ptr("Gets the weather for a given location."),
Parameters: map[string]any{
"type": "object",
"properties": map[string]any{
"location": map[string]any{
"type": "string",
"description": "The city and state",
},
},
"required": []string{"location"},
},
})
resp, err := client.Interactions.Create(ctx, operations.CreateInteractionRequest{
Body: operations.NewCreateInteractionRequestBody(
interactions.CreateModelInteraction{
Model: interactions.Model("gemini-3.8-flash"),
Input: interactions.NewInteractionsInput("What is the weather in Paris?"),
Tools: []interactions.Tool{weatherTool},
Stream: genai.Ptr(true),
},
),
})
if err != nil {
log.Fatal(err)
}
defer resp.InteractionSSEStreamEvent.Close()
currentCalls := make(map[int]*callState)
var toolCalls []map[string]any
for resp.InteractionSSEStreamEvent.Next() {
event := resp.InteractionSSEStreamEvent.Value()
if stepStart := event.GetDataStepStart(); stepStart != nil {
if fcStep := stepStart.GetStepFunctionCall(); fcStep != nil {
idx := stepStart.Index
builder := &strings.Builder{}
if len(fcStep.Arguments) > 0 {
builder.WriteString(fmt.Sprint(fcStep.Arguments))
}
currentCalls[idx] = &callState{
id: fcStep.ID,
name: fcStep.Name,
arguments: builder,
}
}
} else if stepDelta := event.GetDataStepDelta(); stepDelta != nil {
idx := stepDelta.Index
if argsDelta := stepDelta.GetDeltaArgumentsDelta(); argsDelta != nil {
if argsDelta.Arguments != nil {
if call, ok := currentCalls[idx]; ok {
call.arguments.WriteString(*argsDelta.Arguments)
}
}
} else if textDelta := stepDelta.GetDeltaText(); textDelta != nil {
fmt.Print(textDelta.GetText())
}
} else if completed := event.GetDataInteractionCompleted(); completed != nil {
for _, call := range currentCalls {
toolCalls = append(toolCalls, map[string]any{
"type": "function_call",
"id": call.id,
"name": call.name,
"arguments": call.arguments.String(),
})
}
fmt.Println("\nFinal tool calls ready to execute:")
fmt.Println(toolCalls)
}
}
}
REST
curl -X POST "https://generativelanguage.googleapis.com/v1beta/interactions?alt=sse" \
-H "Content-Type: application/json" \
-H "x-goog-api-key: $GEMINI_API_KEY" \
-d '{
"model": "gemini-3.8-flash",
"input": "What is the weather in Paris?",
"tools": [{
"type": "function",
"name": "get_weather",
"description": "Gets the weather for a given location.",
"parameters": {
"type": "object",
"properties": {
"location": {"type": "string", "description": "The city and state"}
},
"required": ["location"]
}
}],
"stream": true
}'
最佳做法
- 函式和參數說明：清楚明確。
- 命名：使用描述性名稱，且不得包含空格或特殊字元。
- 嚴格型別：使用特定型別 (整數、字串、列舉)。
- 工具選取：最多啟用 10 到 20 個工具。
- 提示工程：提供背景資訊和指令。
- 驗證：先驗證函式呼叫，再執行。
- 錯誤處理：導入完善的錯誤處理機制。
- 安全性：為外部 API 使用適當的驗證方式。
工具前文字規定解決方法
問題：如果提示詞要求模型輸出結構化文字 (XML、YAML、JSON 等)，(例如 <UPDATE>...</UPDATE>) 緊接在工具呼叫之前，工具呼叫有時可能會失敗並顯示 Malformed_Function_Call。
解決方法：下列解決方法可解決這個問題：
- 建議做法：指示模型將工具前附註放在專屬的
update()函式呼叫中，而非原始文字 (詳情請見下文)。 - 指示模型以 Markdown 標題 (
# UPDATE、## PLAN) 撰寫附註，而非結構化文字。 - 不要要求模型在呼叫工具前輸出文字。
建議的解決方法：將工作筆記包裝在專屬的函式呼叫中
原始指令：
Before calling a tool, in every response you MUST first output a single `<UPDATE>` part as specified, don't skip this part or any of required sub-tags within `<UPDATE>`.
請使用更新後的指令：
Before calling any other tool, in every response you MUST first call `update` with all required parameters (previous_step, plan, next_step, external).
並更新顧客要求中所有對舊版 <UPDATE> XML 格式的參照。然後為更新函式新增對應的函式宣告：
{
"name": "update",
"description": "Update working notes (previous step analysis, plan, next step, external note).",
"parameters": {
"type": "OBJECT",
"properties": {
"previous_step": {
"type": "STRING",
"description": "Key findings and outcomes since the previous step."
},
"plan": {
"type": "STRING",
"description": "The current status of the plan."
},
"next_step": {
"type": "STRING",
"description": "Brief explanation of the immediate next action according to the plan."
},
"external": {
"type": "STRING",
"description": "A short, plain-language note shown to the User about what you are ABOUT TO DO next."
}
},
"required": [
"previous_step",
"plan",
"next_step",
"external"
]
}
}
接著，模型會在同一個步驟中進行兩次呼叫：取代結構化 XML 的 update() 呼叫，以及模型想進行的實際函式呼叫。
注意事項與限制
- 系統僅支援部分 OpenAPI 結構定義。
- 如果是
any模式，API 可能會拒絕過大或深度巢狀結構的結構定義。 - Python 支援的參數類型有限。
